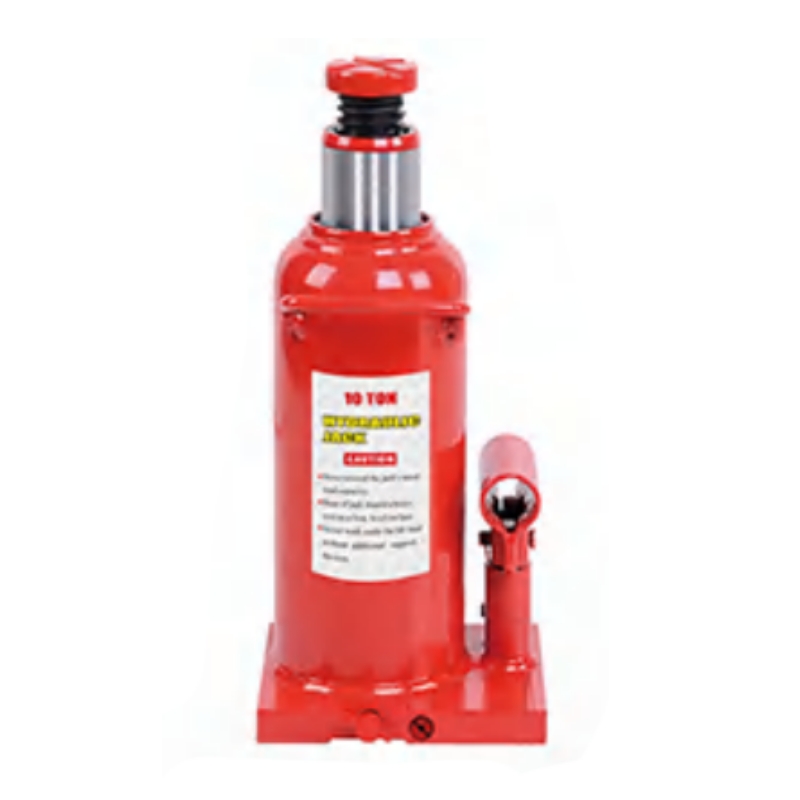

AW09005
AW09005 Series
Package: Color Box/Carton/Wooden Case
Description
| Model | Lifting Wt(ton) | Min.H(mm) | Lifting.H(mm) | Adjust.H(mm) | Max.H(mm) | N.W(kg) | Qty/Ctn(pcs) | G.W(kg) | |
| AW09005 | AW09005-0 | 2 | 158 | 90 | 60 | 308 | 2.5 | 10 | 25.5 |
| AW09005-1 | 3-4 | 180 | 105 | 60 | 345 | 2.7 | 10 | 27.5 | |
| AW09005-2 | 3-4 | 194 | 120 | 60 | 374 | 3.2 | 8 | 26 | |
| AW09005-3 | 5-6 | 220 | 140 | 60 | 420 | 4.2 | 6 | 26 | |
| AW09005-4 | 8 | 230 | 160 | 60 | 450 | 4.9 | 4 | 20 | |
| AW09005-5 | 10 | 230 | 160 | 60 | 450 | 5.2 | 4 | 21.5 | |
| AW09006 | AW09006-1 | 12 | 230 | 160 | 60 | 450 | 6 | 2 | 12.5 |
| AW09006-2 | 15 - 16 | 230 | 160 | 60 | 450 | 6.7 | 2 | 14 | |
| AW09006-3 | 15 - 16 | 190 | 105 | 60 | 355 | 6 | 2 | 12.5 | |
| AW09006-4 | 20 | 244 | 160 | 60 | 464 | 8.3 | 2 | 17 | |
| AW09006-5 | 20 | 205 | 80 | 60 | 295 | 6.3 | 2 | 13 | |
| AW09006-6 | 30 - 32 | 255 | 150 | / | 405 | 12 | 2 | 24.5 | |
| AW09006-7 | 30 - 32 | 255 | 150 | 50 | 455 | 12.3 | 2 | 25 | |
| AW09006-8 | 32 - 32 | 255 | 150 | / | 405 | 17 | 2 | 34.5 | |
| AW09006-9 | 30 - 32 | 255 | 150 | 50 | 405 | 17.8 | 2 | 36 | |
| AW09006-10 | 50 | 270 | 150 | / | 420 | 25 | 1 | 25.5 | |
| AW09007 | AW09007-0 | 2 | 158 | 90 | 60 | 308 | 2.23 | 10 | 23 |
| AW09007-1 | 3-4 | 195 | 125 | 60 | 380 | 3.2 | 8 | 26 | |
| AW09007-2 | 5-6 | 197 | 125 | 60 | 382 | 4.1 | 6 | 25 | |
| AW09007-3 | 8 | 205 | 125 | 60 | 390 | 4.9 | 4 | 20 | |
| AW09008 | AW09008-1 | 10 | 205 | 125 | 60 | 390 | 5.6 | 4 | 23 |
| AW09008-2 | 12 | 215 | 125 | 60 | 400 | 6.5 | 2 | 13.5 | |
| AW09009 | AW09009-0 | 15 - 16 | 225 | 140 | 60 | 425 | 7.8 | 2 | 16 |
| AW09009-1 | 20 | 244 | 145 | 60 | 449 | 10.2 | 2 | 21 | |
| AW09010 | 30 - 32 | 285 | 180 | / | 465 | 14 | 2 | 28.5 | |
| AW09011 | 50 | 300 | 180 | / | 480 | 29.5 | 1 | 30 | |
| AW09012 | AW09012-0 | 100 | 340 | 180 | / | 520 | 75 | 1 | 77 |
| AW09012-1 | 200 | 360 | 180 | / | 540 | 135 | 1 | 138 | |
| AW09013 | AW09013-0 | 2 | 181 | 116 | 48 | 345 | 2.35 | 10 | 24 |
| AW09013-1 | 3-4 | 195 | 125 | 60 | 380 | 3.2 | 8 | 26 | |
| AW09013-2 | 5-6 | 216 | 127 | 70 | 413 | 4.2 | 6 | 26 | |
| AW09013-3 | 8 | 230 | 147 | 80 | 457 | 5.3 | 4 | 22 | |
